SONORA is a cost-effective, training-focused drone built to simulate ISR operations without the high cost or complexity of frontline systems. Designed for repeatable use, easy repair, and modular upgrades, SONORA enables armed forces to train with a realistic, representative ISR-class drone, enhancing readiness while keeping budgets under control.
UAS

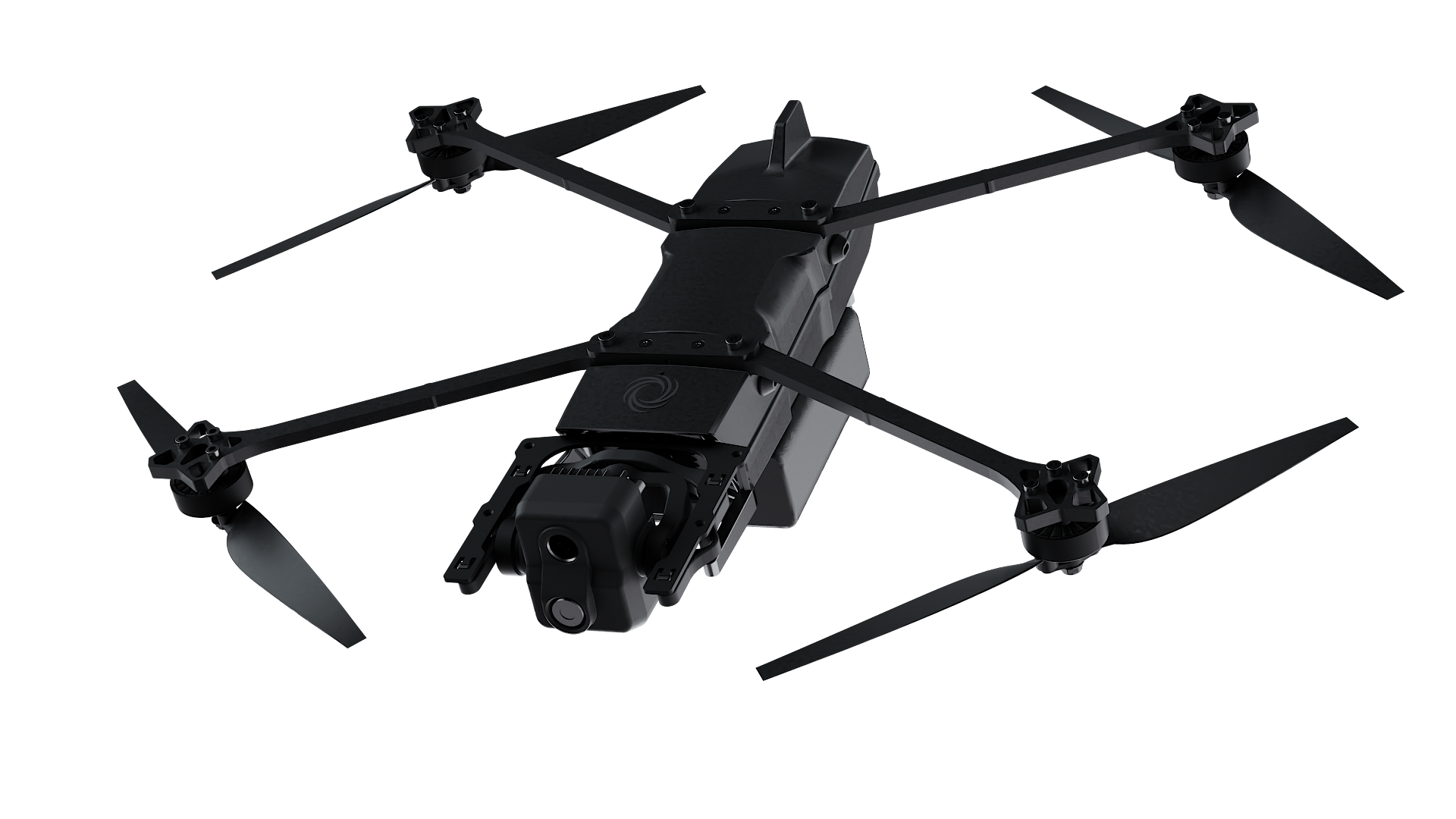

Sonora
- _TRAINING-READY ISR
- _COST EFFECTIVE
- _MODULAR AND REPAIRABLE
Mission
Designed for Training
Repairable by design
SONORA’s architecture is fully modular, allowing components to be easily replaced or repaired to extend operational life. This design reduces downtime, simplifies maintenance, and ensures long-term value in demanding training environments.
Intuitive operation
Designed for ease of use, SONORA requires minimal training, allowing soldiers to focus on the mission rather than complex controls.
Mass deployment
Designed for frequent deployment, SONORA provides reliable ISR capability at a fraction of the cost of conventional UAVs, ideal for large-scale exercises and iterative training.
SPECS & FEATURES
Specs
- EO camera
Low Light sensor
Zoom X6 including X3 lossless
End-User Resolution 1280 x 720 pixels
Frame Rate 30 fps
- IR camera
End-User Resolution 320 x 240
Frame Rate 30 fps
- Stabilization
2 axis mechanical stabilization
- Flight Time
> 40 min
- Ready for Take-Off
< 1 min
- Size
35 cm x 42 cm x 11 cm (w battery)
13,7 in x 11 in x 4,7 in - Weight
< 1.8kg / < 3.5 lbs (w battery)
- Range
2 km / 3.1 mi
Features
- Easy to operate
- Enhanced night and low-light performances
- IP-rating
equivalent to IP53
- Full System Integrated with GCS
AI Features
Sonora integrates embedded, frugal AI models to enable real-time target identification and tracking in complex training scenarios.
Its onboard intelligence operates without relying on cloud connectivity, ensuring continuity even in GNSS-denied environments.
Sonora
